Un optoacoplador, también llamado optoaislador o aislador acoplado ópticamente, es un dispositivo de emisión y recepción que funciona como un interruptor activado mediante la luz emitida por un diodo LED que satura un componente optoelectrónico, normalmente en forma de fototransistor o fototriac. De este modo se combinan en un solo dispositivo semiconductor, un fotoemisor y un fotorreceptor cuya conexión entre ambos es óptica. Estos elementos se encuentran dentro de un encapsulado que por lo general es del tipo DIP. Se suelen utilizar para aislar eléctricamente a dispositivos muy sensibles.

Puede buscar el componente que necesita por código, o por medio de los filtros de búsqueda.
¿Tiene consultas?: (011) 4953-0417 o por email a ventas@gmelectronica.com.ar

Código	Salida	Tipo	Salida Io (mA)	Salida Vo (V)		Observaciones	Fig.
Código	Salida	Tipo	Salida Io (mA)	Salida Vo (V)	Ic/If (%)	Observaciones	Fig.
IL1	TRANSISTOR	DIL-6	50,0	20,0	35	6 - 25 µS	A1
IL1	TRANSISTOR	DIL-6	50,0	20,0	35	6 - 25 µS	A1
IL1	TRANSISTOR	DIL-6	50,0	20,0	35	6 - 25 µS	A1
IL74	TRANSISTOR	DIL-6	50,0	20,0	35	6 - 25 µS	A1
H11D3S	TRANSISTOR	SO-6 SMD	100,0	200,0	20	5 - 5 µs	A1
H11D4	TRANSISTOR	DIL-6	100,0	200,0	10	5 - 5 µs	A1
4N25	TRANSISTOR	DIL-6	50,0	30,0	20	0.9-11 µS	A1
4N25D (4N25S)	TRANSISTOR	SO-6 SMD	50,0	30,0	20	0.9-11 µS	A1
4N26	TRANSISTOR	DIL-6	50,0	30,0	20	2.5 µS	A1
4N27	TRANSISTOR	DIL-6	50,0	30,0	10	2 - 5 µS	A1
4N28	TRANSISTOR	DIL-6	50,0	30,0	10	2 - 5 µS	A1
4N35	TRANSISTOR	DIL-6	100,0	30,0	100	4 - 4 µS	A1
4N35D (4N35S)	TRANSISTOR	SO-6 SMD	100,0	30,0	100	4 - 4 µS	A1
4N36	TRANSISTOR	DIL-6	50,0	30,0	100	2 - 2 µS	A1
4N37	TRANSISTOR	DIL-6	100,0	30,0	100	4 - 4 µS	A1
H11A1	TRANSISTOR	DIL-6	10,0	30,0	50	2 µS	A1
H11A1S	TRANSISTOR	SO-6 SMD	10,0	30,0	50	2 µS	A1
H11A3	TRANSISTOR	DIL-6	10,0	30,0	20	2 µS	A1
MCT2	TRANSISTOR	DIL-6	16,0	30,0	20	10 - 30µS	A1
MCT2E	TRANSISTOR	DIL-6	16,0	30,0	20	2.6 µS	A1
MOC8100	TRANSISTOR	DIL-6	100,0	30,0	30	20 - 20µS	A1
SL5500	TRANSISTOR	SO-6 SMD	0,0	30,0	50	20 - 50 µS	A1
TIL111	TRANSISTOR	DIL-6	7,0	30,0	40	5 µS	A1
TIL116	TRANSISTOR	DIL-6	5,0	30,0	50	7 µS	A1
TIL117	TRANSISTOR	DIL-6	9,0	30,0	50	9 µS	A1
H11D1	TRANSISTOR	DIL-6	100,0	300,0	20	5 - 5 µs	A1
H11D2	TRANSISTOR	DIL-6	100,0	300,0	20	5 - 5 µs	A1
CQY80N	TRANSISTOR	DIL-6	50,0	32,0	90	11 - 7 µS	A1
CNY17-1D	TRANSISTOR	SO-6 SMD	50,0	70,0	40	5.6-4.1 µS	A1
CNY17-1	TRANSISTOR	DIL-6	50,0	70,0	40	5.6-4.1 µS	A1
CNY17-2	TRANSISTOR	DIL-6	50,0	70,0	63	5.6-4.1 µS	A1
CNY17-3	TRANSISTOR	DIL-6	50,0	70,0	100	5.6-4.1 µS	A1
CNY17-4	TRANSISTOR	DIL-6	50,0	70,0	160	5.6-4.1 µS	A1
CNY17-4D	TRANSISTOR	SO-6 SMD	50,0	70,0	160	5.6-4.1 µS	A1
H11AV1A	TRANSISTOR	DIL-6	15,0	70,0	150	5 - 4 µS	A1
PC702V	TRANSISTOR	DIL-6	50,0	70,0	40	2 µS	A1
TLP535	TRANSISTOR	DIL-6	100,0	70,0	63	'-'	A1
4N38	TRANSISTOR	DIL-6	20,0	80,0	40	0.8 - 7 µS	A1
CNY75C	TRANSISTOR	DIL-6	10,0	90,0	160	4.2 - 4.7 µS	A1
MOC8102	TRANSISTOR	DIL-6	50,0	30,0	50	2 µS	A2
MOC8103	TRANSISTOR	DIL-6	50,0	30,0	100	2 µS	A2
CNY17F-2	TRANSISTOR	DIL-6	50,0	70,0	63	3 - 2.3 µS	A2
CNY17F-3	TRANSISTOR	DIL-6	50,0	70,0	100	3 - 2.3 µS	A2
TLP131GB	TRANSISTOR	SO-6 SMD	50,0	80,0	100	2 - 3 µS	A3
TLP112	TRANSISTOR	SO-5 SMD	8,0	15,0	20	'-'	A4
TLP109	TRANSISTOR	SO-5 SMD	8,0	20,0	20	'-'	A4
H11B1	DARLINGTON	DIL-6	10,0	25,0	500	125-100 µS	B
H11B2	DARLINGTON	DIL-6	10,0	25,0	200	125-100 µS	B
4N30	DARLINGTON	DIL-6	150,0	30,0	100	5 - 40 µS	B
4N31	DARLINGTON	DIL-6	150,0	30,0	50	2 - 25 µS	B
4N32	DARLINGTON	DIL-6	150,0	30,0	500	2 - 60 µS	B
4N33	DARLINGTON	DIL-6	150,0	30,0	500	2 - 60 µS	B
MCA230	DARLINGTON	DIL-6	50,0	30,0	100	10 - 35 µS	B
TIL113	DARLINGTON	DIL-6	30,0	30,0	300	300 µS	B
TIL119	DARLINGTON	DIL-6	30,0	30,0	300	50 µS	B
MCA255	DARLINGTON	DIL-6	50,0	55,0	100	10 - 100uS	B
MOC8021M	DARLINGTON	DIL-6	125,0	80,0	'-'	5 - 100 µS	B
MOC8050	DARLINGTON	DIL-6	150,0	80,0	500	13 - 60 µS	B
MOC216R1	TRANSISTOR	SO-8 SMD	150,0	30,0	50	3 uS	C
PC814	TRANSISTOR	DIL-4	50,0	35,0	20	AC INPUT	D1
TLP620	TRANSISTOR	DIL-4	50,0	55,0	100	AC INPUT	D1
TLP626	TRANSISTOR	DIL-4	50,0	55,0	50	AC INPUT	D1
SFH6206-3	TRANSISTOR	SO-4 SMD	50,0	70,0	100	AC INPUT	D1
PS2505-1	TRANSISTOR	DIL-4	50,0	80,0	300	AC INPUT	D1
PC824	TRANSISTOR	DIL-8	50,0	35,0	20	2 x PC814	D2
TLP620-2	TRANSISTOR	DIL-8	50,0	55,0	100	AC INPUT	D2
PS2505-2	TRANSISTOR	DIL-8	50,0	80,0	300	AC INPUT	D2
PC844	TRANSISTOR	DIL-16	50,0	35,0	20	4 x PC814	D3
TLP620-4	TRANSISTOR	DIL-16	50,0	55,0	100	AC INPUT	D3
PS2505-4	TRANSISTOR	DIL-16	50,0	80,0	300	AC INPUT	D3
ILD74	TRANSISTOR	DIL-8	30,0	20,0	35	6 - 25 µS	E
MCT62 (MCT6)	TRANSISTOR	DIL-8	30,0	20,0	100	2.4 µS	E
TLP504A	TRANSISTOR	DIL-8	50,0	55,0	100	2 - 3 µS	E
ILQ74 (CNY74-4)	TRANSISTOR	DIL-16	12,0	20,0	35	6 - 25 µS	F
H11AA1	TRANSISTOR	DIL-6	100,0	30,0	20	AC INPUT	G1
H11AA1D	TRANSISTOR	SO-6 SMD	100,0	30,0	20	AC INPUT	G1
TIL186	TRANSISTOR	DIL-6	0,0	55,0	'-'	AC INPUT	G1
IL256AT	TRANSISTOR	SO-8 SMD	60,0	30,0	20	AC INPUT	G2
MOC3010	TRIAC	DIL-6	100,0	250,0	15mA	12 V/µS	H
MOC3011	TRIAC	DIL-6	100,0	250,0	10mA	12 V/µS	H
MOC3012	TRIAC	DIL-6	100,0	250,0	5mA	12 V/µS	H
MOC3020	TRIAC	DIL-6	100,0	400,0	30mA	12 V/µS	H
MOC3021	TRIAC	DIL-6	100,0	400,0	15mA	12 V/µS	H
MOC3021S	TRIAC	SO-6 SMD	100,0	400,0	15mA	12 V/µS	H
MOC3022	TRIAC	DIL-6	100,0	400,0	10mA	12 V/µS	H
MOC3023	TRIAC	DIL-6	100,0	400,0	5mA	12 V/µS	H
MOC3030	TRIAC	DIL-6	100,0	250,0	30mA	100 V/µS	I
MOC3031	TRIAC	DIL-6	100,0	250,0	15mA	100 V/µS	I
MOC3040	TRIAC	DIL-6	100,0	400,0	30mA	100 V/µS	I
MOC3041	TRIAC	DIL-6	100,0	400,0	15mA	100 V/µS	I
MOC3042	TRIAC	DIL-6	100,0	400,0	10mA	100 V/µS	I
MOC3043	TRIAC	DIL-6	100,0	400,0	5mA	2000 V/µS	I
MOC3061	TRIAC	DIL-6	100,0	600,0	10mA	1500 V/µS	I
MOC3062	TRIAC	DIL-6	100,0	600,0	15mA	1500 V/µS	I
MOC3063	TRIAC	DIL-6	100,0	600,0	5mA	1500 V/µS	I
MOC3081	TRIAC	DIL-6	100,0	800,0	15mA	1500 V/µS	I
MOC3083	TRIAC	DIL-6	100,0	800,0	5mA	1500 V/µS	I
PC4SD21NTZD	TRIAC	DIL-6	100,0	800,0	3mA	1000 V/µS	I
H11C1	TIRISTOR	DIL-6	300,0	200,0	20mA	500 V/µS	J1
H11C3	TIRISTOR	DIL-6	300,0	200,0	30mA	500 V/µS	J1
IL400	TIRISTOR	DIL-6	1.000,0	400,0	20mA	'-'	J1
S12MD1V	TIRISTOR	DIL-6	200,0	400,0	15mA	3 V/µS(MIN)	J1
S12ME1	TIRISTOR	DIL-6	200,0	400,0	10mA	3 V/µS(MIN)	J1
S22MD1V	TIRISTOR	SO-6 SMD	200,0	600,0	10mA	5 V/µS(MIN)	J1
6N135	TRANSISTOR	DIL-8	8,0	15,0	18	1 MBits/S	K
6N136	TRANSISTOR	DIL-8	8,0	15,0	24	1 MBits/S	K
6N136D	TRANSISTOR	SO-8 SMD	8,0	15,0	24	1 MBits/S	K
TLP550	TRANSISTOR	DIL-8	8,0	15,0	30	1 MBits/S	K
HCPL2502	TRANSISTOR	DIL-8	8,0	20,0	25	1 MBit/S	K
6N139	DARLINGTON	DIL-8	60,0	18,0	500	5 - 18 µS	L
6N138	DARLINGTON	DIL-8	60,0	7,0	300	10 - 35µS	L
HCPL2730	DARLINGTON	DIL-8	60,0	18,0	300	DUAL 6N138	LL
HCPL2731	DARLINGTON	DIL-8	60,0	18,0	500	DUAL 6N139	LL
TLP523-2	DARLINGTON	DIL-8	50,0	55,0	2000	DUAL	LL
H11G1	DARLINGTON	DIL-6	150,0	100,0	1000	5 - 100 µS	M
IS661	DARLINGTON	DIL-6	150,0	300,0	1000	300 - 100 µS	M
SFH610A3	TRANSISTOR	DIL-4	50,0	70,0	100	3 - 2.3 µS	N0
PC817	TRANSISTOR	DIL-4	50,0	35,0	50	4 µS	N1
TLP521-1	TRANSISTOR	DIL-4	50,0	35,0	50	3 µS	N1
SFH618A5	TRANSISTOR	DIL-4	50,0	55,0	250	3.5 - 5µS	N1
TLP621-1	TRANSISTOR	DIL-4	50,0	55,0	50	3 µS	N1
TLP624-1	TRANSISTOR	DIL-4	50,0	55,0	100	8 µS	N1
PC816	TRANSISTOR	DIL-4	50,0	70,0	50	18 µS	N1
SFH615A2	TRANSISTOR	DIL-4	50,0	70,0	63	3 - 2.3 µS	N1
SFH615A3	TRANSISTOR	DIL-4	50,0	70,0	100	3 - 2.3 µS	N1
SFH615A4	TRANSISTOR	DIL-4	50,0	70,0	90	2µS	N1
SFH617A4	TRANSISTOR	DIL-4	50,0	70,0	160	3 - 2.3 µS	N1
PS2501-1	TRANSISTOR	DIL-4	50,0	80,0	80	3 - 5 µS	N1
PS2561BL-1	TRANSISTOR	SO-4 SMD	50,0	80,0	200	3 - 5 µS	N1
TLP321-1	TRANSISTOR	DIL-4	50,0	80,0	50	2 - 3 µS	N1
PC827	TRANSISTOR	DIL-8	50,0	35,0	50	4 µS	N2
TLP521-2	TRANSISTOR	DIL-8	50,0	35,0	50	3 µS	N2
TLP621-2	TRANSISTOR	DIL-8	50,0	55,0	50	3 µS	N2
ACPL227	TRANSISTOR	SO-8 SMD	50,0	80,0	50	2 - 3 µS	N2
PS2501-2	TRANSISTOR	DIL-8	50,0	80,0	80	3 µS	N2
TLP321-2	TRANSISTOR	DIL-8	50,0	80,0	50	2 - 3 µS	N2
PC847	TRANSISTOR	DIL-16	50,0	35,0	50	4 µS	N3
TLP521-4	TRANSISTOR	DIL-16	50,0	35,0	50	3 µS	N3
TLP621-4	TRANSISTOR	DIL-16	50,0	55,0	50	3 µS	N3
TLP624-4	TRANSISTOR	DIL-16	50,0	55,0	50	8 µS	N3
ILQ615-3	TRANSISTOR	DIL-16	50,0	70,0	100	2.8-14uS	N3
ACPL247	TRANSISTOR	SO-16 SMD	50,0	80,0	100	2 - 3 µS	N3
TLP121-4	TRANSISTOR	SO-16 SMD	50,0	80,0	100	2 - 3uS	N3
TLP321-4	TRANSISTOR	DIL-16	50,0	80,0	50	2 - 3 µS	N3
SFH619A	DARLINGTON	DIL-4	125,0	300,0	1000	1-20 µS	O1
PS2502-1	DARLINGTON	DIL-4	200,0	40,0	2000	100 µS	O1
PS2502L-1	DARLINGTON	SO-4 SMD	200,0	40,0	2000	100 µS	O1
TLP523	DARLINGTON	DIL-4	150,0	55,0	2000	3 - 80 µS (con diodo)	O1
TLP627-2	DARLINGTON	DIL-8	150,0	300,0	1000	5 - 80 µS (con diodo)	O2
PS2502-2	DARLINGTON	DIL-8	200,0	40,0	2000	100 µS	O2
PS2502-4	DARLINGTON	DIL-16	200,0	40,0	2000	100 µS	O3
PS2501-4	TRANSISTOR	DIL-16	50,0	80,0	300	3 - 5uS	O3
H11L1	SCHMITT TRIGGER	DIL-6	50,0	15,0	'-'	If=1.6mA MAX	Q
H11L1D	SCHMITT TRIGGER	SO-6 SMD	50,0	15,0	'-'	If=1.6mA MAX	Q
H11L2	SCHMITT TRIGGER	DIL-6	50,0	15,0	'-'	If=10mAMAX	Q
MOC5007	SCHMITT TRIGGER	DIL-6	50,0	16,0	'-'	If=1.6mA MAX	Q
MOC5009	SCHMITT TRIGGER	DIL-6	50,0	16,0	'-'	If=10mA MAX	Q
CLM3012A	LAMPARA LDR	AXIAL	0,0	100,0	10V	175Ω-100MΩ	S
CLM5H10A	LAMPARA LDR	AXIAL	0,0	100,0	8V	5KΩ-10MΩ	S
CLM7H16A	LAMPARA LDR	AXIAL	0,0	100,0	13V	900Ω-1MΩ	S
CLM3000	LAMPARA LDR	AXIAL	0,0	175,0	14V	500Ω-1MΩ	S
CLM3500	LAMPARA LDR	AXIAL	0,0	250,0	120V	160Ω-1MΩ	S
H11F3	FET	DIL-6	100,0	15,0	'-'	25 µS	T1
H11F1	FET	DIL-6	100,0	30,0	'-'	25 µS	T1
AQV210E	DUAL MOS	DIL-6	130,0	350,0	'-'	500-1000 uS	T2
TLP595G	DUAL MOS	DIL-6	150,0	400,0	'-'	AISLACION 2500V	T2
ULN3360T	5.4K PULL-UP	SIP-3 / LLAVE	25,0	15,0	'-'	TO-92	U
ULN3363T	INV OPEN COLLECTOR	SIP-3 / LLAVE	25,0	15,0	'-'	TO-92	U
CNY70	TRANSISTOR	REFLECTIVO	50,0	32,0	'-'	d < 4.5 mm	V1
MOC70P2	TRANSISTOR	ABIERTO "U"	0,0	30,0	'-'	20 - 80µS Ranura: 5.6 x 5.08 mm	W1
TCST1030 MINIATURA	TRANSISTOR	ABIERTO "U"	0,0	70,0	'-'	15- 10µS Ranura: 4 x 3 mm	W1
TCST1202	TRANSISTOR	ABIERTO "U"	0,0	70,0	'-'	10 - 8µS	W1
GP1A01	TRANSISTOR	ABIERTO "U"	0,0	16,0	3pin	5 µS Ranura: 7.7 x 3.1 mm	W2
PS4001	DARLINGTON	ABIERTO "U"	0,0	30,0	'-'	200 µS Ranura: 6.5 x 2.6 mm	W2
TIL168-1	DARLINGTON	ABIERTO "U"	0,0	30,0	10	1000 µS Ranura: 6.5 x 2.6 mm	W2
TIL167-2	TRANSISTOR	ABIERTO "U"	0,0	30,0	'-'	15 - 15µS Ranura: 6.5 x 2.6 mm	W2
TCST2103	TRANSISTOR	ABIERTO "U"	0,0	70,0	10	10 - 8 µs Ranura: 7.7 x 3.1 mm	W2
HCPL2611	TTL	DIL-8	50,0	5,0	'-'	10 MBits/S	X1
6N137	TTL	DIL-8	50,0	7,0	'-'	30 nS	X1
HCPL2601	TTL	DIL-8	50,0	7,0	'-'	10 MBits/S	X1
HCPL0701	TTL/ CMOS	SO-8 SMD	60,0	7,0	500	0.1MBits/S	X1
TLP115A	High Speed Logic	SO-6 SMD	25,0	7,0	'-'	0.03 µS	X2
IL300-DEFG	PIN PHOTODIODE	DIL-8	10,0	0,0	'-'	1.75 µS	X3
PVDZ172N	MOSPOWER	DIL-8	1.500,0	60,0	4pin	SOLID STATE RELAY	X4
HCPL2530	TTL	DIL-8	16,0	20,0	'-'	1 MBits/S	Y
HCPL2531	TTL	DIL-8	16,0	20,0	'-'	1 MBits/S	Y
HCPL2630	TTL	DIL-8	16,0	7,0	'-'	10 MBits/S	Y
HCPL3120 (TLP250)	IGBt DRIVER	DIL-8	500,0	35,0	'-'	0.15 µS	Z1
TLP250D	IGBt DRIVER	SO-8 SMD	500,0	35,0	'-'	0.15 µS	Z1
TLP557	Transistor DRIVER	DIL-8	300,0	16,0	'-'	5 µS	Z2
TLP351	IGBt DRIVER	DIL-8	600,0	35,0	'-'	'-'	Z2
PC923	IGBt DRIVER	DIL-8	0,1	35,0	'-'	'-'	Z3
HCPL7800	Isolation Amplifier	DIL-8	0,0	0,0	'-'	Control de motores	Z4
HCPL7840	Isolation Amplifier	DIL-8	0,0	0,0	'-'	Control de motores	Z4
HCPL316J (A316J)	IGBt DRIVER	SO-16 SMD	1.500,0	2,5	'-'	0.3uS	Z5
HCPL2211	LOGIC GATE	DIL-8	25,0	20,0	'-'	'-'	Z6
HCPL2212	LOGIC GATE	DIL-8	25,0	20,0	'-'	'-'	Z7
HCPL3020	IGBt DRIVER	DIL-8	400,0	35,0	-	-	Z8
HCPL314J (A314J)	IGBt DRIVER	SO-16 SMD	400,0	0,0	-	0.3uS	Z9

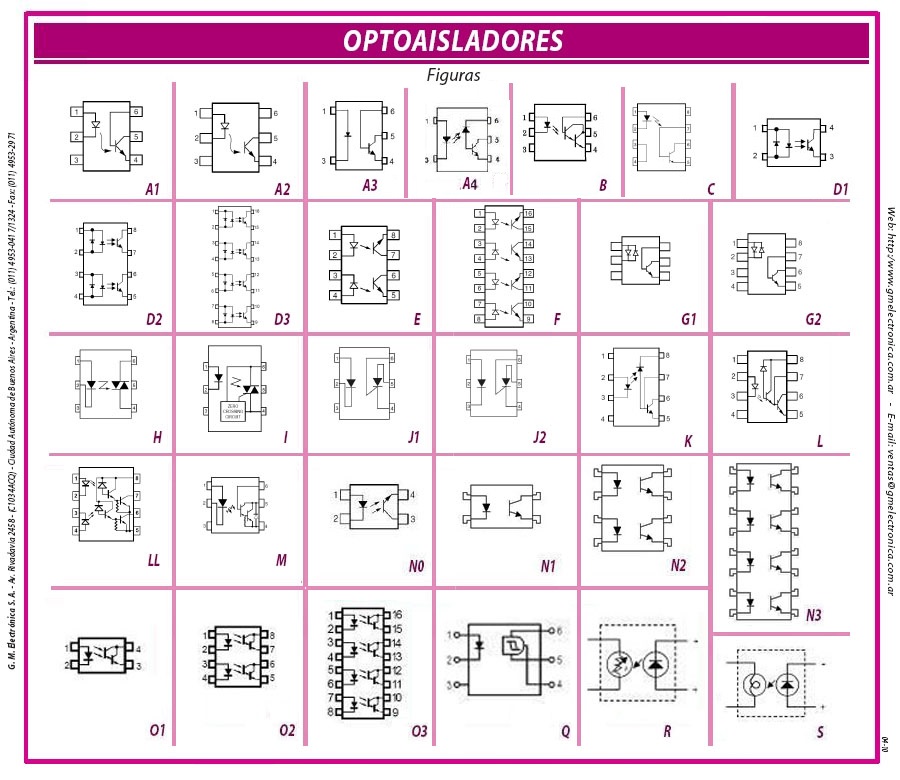

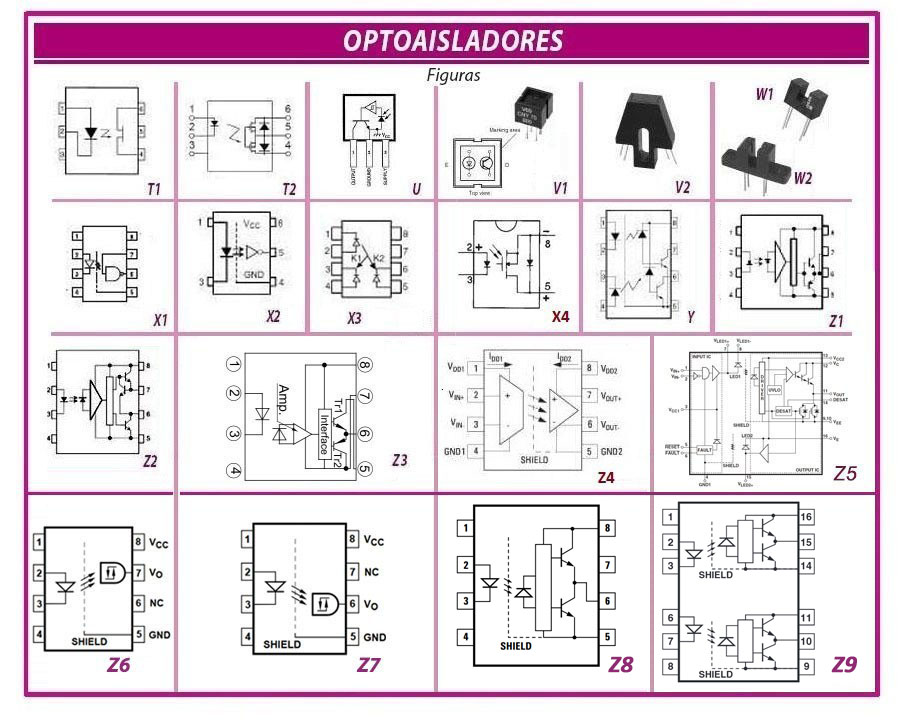

Figuras:
