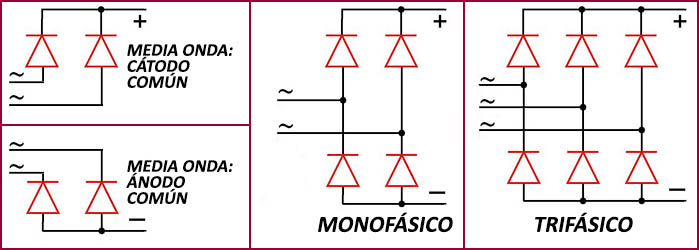

Configuraciones:

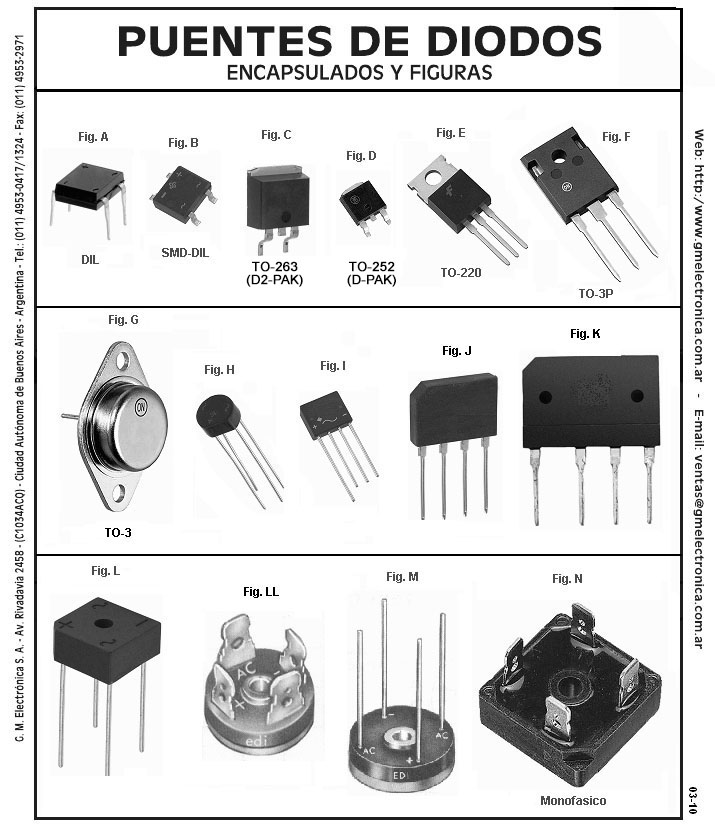

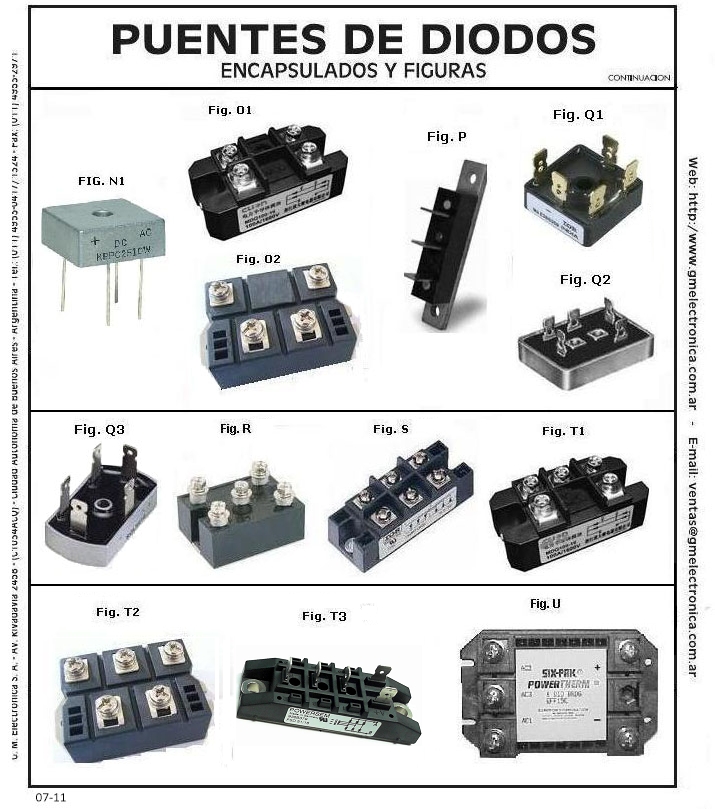

| CODIGO | TIPO | CORRIENTE MEDIA Io (A) | TENSION INVERSA Vprv(V) | Tiene orificio | FIG. | ||||
|---|---|---|---|---|---|---|---|---|---|
| CODIGO | TIPO | CORRIENTE MEDIA Io (A) | TENSION INVERSA Vprv(V) | Ifsm (SURGE) NO REPETITIVO (A) | TIEMPO DE RECUP. trr(nS) | MARCA | Dim. (mm) | Tiene orificio | FIG. |
| 150VC05L | MEDIA ONDA | 15,0 | 50 | 150 | - | VISHAY I.R. | - | P | |
| 150VC4L | MEDIA ONDA | 15,0 | 400 | 150 | - | VISHAY I.R. | - | P | |
| 300WC05L | MEDIA ONDA | 30,0 | 50 | 400 | - | VISHAY I.R. | - | P | |
| 300WJ05L * | MEDIA ONDA | 30,0 | 50 | 400 | - | VISHAY I.R. | - | P | |
| 300WC1L | MEDIA ONDA | 30,0 | 100 | 400 | - | VISHAY I.R. | - | P | |
| 300WC4L | MEDIA ONDA | 30,0 | 400 | 400 | - | VISHAY I.R. | - | P | |
| MUR1620CT | MEDIA ONDA RÁPIDO | 16,0 | 200 | 100 | 20 | ON SEMI | - | - | E |
| MUR1660CT | MEDIA ONDA RÁPIDO | 16,0 | 600 | 100 | 35 | FEP16JT GI | - | - | E |
| MUR3060PT | MEDIA ONDA RÁPIDO | 30,0 | 600 | 150 | 60 | FEP30JP GI | - | - | F |
| HFA30PA60C | MEDIA ONDA RÁPIDO | 30,0 | 600 | 150 | 19 | VISHAY I.R. | - | - | F |
| MBRD640CTG SMD | MEDIA ONDA SCHOTTKY | 6,0 | 40 | 75 | 10 | ON SEMI | - | - | D |
| MBRD660CTG SMD | MEDIA ONDA SCHOTTKY | 6,0 | 60 | 75 | 10 | ON SEMI | - | - | D |
| MBR1535CT | MEDIA ONDA SCHOTTKY | 15,0 | 35 | 150 | 10 | GSI | - | - | E |
| MBR1545CT | MEDIA ONDA SCHOTTKY | 15,0 | 45 | 150 | 10 | ON | - | - | E |
| MBRB1545CT SMD | MEDIA ONDA SCHOTTKY | 15,0 | 45 | 150 | 30 | GSI | - | - | C |
| 16CTQ100 | MEDIA ONDA SCHOTTKY | 16,0 | 100 | 275 | 10 | VISHAY I.R. | - | - | E |
| MBR2535CT | MEDIA ONDA SCHOTTKY | 30,0 | 35 | 150 | 10 | MOTOROLA | - | - | E |
| MBR3040PT | MEDIA ONDA SCHOTTKY | 30,0 | 40 | 200 | 10 | MOTOROLA | - | - | F |
| MBR2545CT | MEDIA ONDA SCHOTTKY | 30,0 | 45 | 150 | 10 | MOTOROLA | - | - | E |
| MBR3045PT | MEDIA ONDA SCHOTTKY | 30,0 | 45 | 200 | 10 | MOTOROLA | - | - | F |
| MBRB2545CT SMD | MEDIA ONDA SCHOTTKY | 30,0 | 45 | 150 | 10 | MOTOROLA | - | - | C |
| 30CTQ050 | MEDIA ONDA SCHOTTKY | 30,0 | 50 | 265 | 10 | VISHAY I.R. | - | - | E |
| 30CTQ060 | MEDIA ONDA SCHOTTKY | 30,0 | 60 | 265 | 10 | VISHAY I.R. | - | - | E |
| 30CPQ060 | MEDIA ONDA SCHOTTKY | 30,0 | 60 | 265 | 10 | MOTOROLA | - | - | F |
| MBR4015LWT | MEDIA ONDA SCHOTTKY | 40,0 | 15 | 400 | 10 | MOTOROLA | - | - | F |
| 40CPQ045 | MEDIA ONDA SCHOTTKY | 40,0 | 45 | 300 | - | VISHAY I.R. | - | - | F |
| MBR4060PT | MEDIA ONDA SCHOTTKY | 40,0 | 60 | 400 | 10 | MOTOROLA | - | - | F |
| 80CPQ150 | MEDIA ONDA SCHOTTKY | 80,0 | 150 | 500 | - | VISHAY I.R. | - | - | F |
| EDF1A (RÁPIDO) | MONOFÁSICO | 1,0 | 50 | 30 | 50 | EDI | - | - | A |
| DF06M | MONOFÁSICO | 1,0 | 600 | 50 | - | DIODES INC | - | - | A |
| DL10 | MONOFÁSICO | 1,0 | 1000 | 30 | - | G.I. | - | - | A |
| B500S SMD | MONOFÁSICO | 1,0 | 1000 | 40 | - | DIOTEC | - | - | B |
| W04F | MONOFÁSICO | 1,5 | 400 | 50 | - | G.I. | Ø8x5 | - | H |
| PF60 | MONOFÁSICO | 1,5 | 600 | 50 | - | RECTRON | Ø8x5 | - | H |
| W06F (RB155) | MONOFÁSICO | 1,5 | 600 | 50 | - | G.I. | Ø8x3 | - | H |
| W10F (W10M) | MONOFÁSICO | 1,5 | 1000 | 50 | - | G.I. / TAITRON | Ø10x4 | - | H |
| 2KBB20 | MONOFÁSICO | 2,0 | 200 | 50 | - | GSI +WW- | 14x10x5 | NO | J |
| B80C2000/1500B | MONOFÁSICO | 2,0 | 200 | 100 | - | FAGOR W+W- | 20x10x5 | NO | J |
| 2KBP04M | MONOFÁSICO | 2,0 | 400 | 60 | - | G.S. +WW- | 14x10x5 | NO | J |
| B250C2000/1500B | MONOFÁSICO | 2,0 | 600 | 100 | - | FAGOR W+W- | 20x10x5 | NO | J |
| B380C2000/1500B | MONOFÁSICO | 2,0 | 1000 | 100 | - | FAGOR W+W- | 20x10x5 | NO | J |
| GBPC1005 | MONOFÁSICO | 3,0 | 50 | 60 | - | G.I. | 15x15x4 | SI | L |
| DB304 | MONOFÁSICO | 3,0 | 400 | 50 | - | I.C. | 15x15x4 | SI | L |
| DB306 | MONOFÁSICO | 3,0 | 600 | 50 | - | I.C. | 25x14x3 | SI | L |
| RBA401 | MONOFÁSICO | 4,0 | 100 | 80 | - | SANKEN+WW- | 25x14x3 | SI | I |
| KBU4B | MONOFÁSICO | 4,0 | 100 | 200 | - | GSI +WW- | 22x18x7 | SI | I |
| KBL10 | MONOFÁSICO | 4,0 | 1000 | 200 | - | DC +WW- | 18x15x6 | NO | I |
| PE20 | MONOFÁSICO | 5,0 | 200 | 150 | - | EDI +WW- | 17x12x6 | NO | I |
| B250C5000A | MONOFÁSICO | 5,0 | 600 | 0 | - | DC +WW- | 40x20x7 | NO | J |
| B250C5000B | MONOFÁSICO | 5,0 | 600 | 0 | - | DIOTEC W+W- | 32x16x6 | NO | J |
| KBU6D | MONOFÁSICO | 6,0 | 200 | 175 | - | G.S. +WW- | 22x18x3 | SI | J |
| KBU6J | MONOFÁSICO | 6,0 | 600 | 175 | - | G.S. +WW- | 22x18x3 | SI | J |
| PP80 / GBPC608 | MONOFÁSICO | 6,0 | 800 | 100 | - | G.I. | 15x15x4 | SI | L |
| KBU6M | MONOFÁSICO | 6,0 | 1000 | 175 | - | G.S. +WW- | 22x18x3 | SI | J |
| KBU8K | MONOFÁSICO | 8,0 | 800 | 250 | - | G.S. +WW- | 22x18x7 | SI | J |
| KBU8M | MONOFÁSICO | 8,0 | 1000 | 250 | - | G.S. +WW- | 22x18x7 | SI | J |
| KBU10M | MONOFÁSICO | 10,0 | 1000 | 250 | - | G.S. +WW- | 22x18x7 | SI | J |
| PKR100F # RÁPIDO | MONOFÁSICO | 10,0 | 1000 | 125 | - | EDI | Ø22x8 | SI | LL |
| PK20F | MONOFÁSICO | 12,0 | 200 | 150 | - | EDI | Ø22x8 | SI | LL |
| PB20 | MONOFÁSICO | 25,0 | 200 | 300 | - | EDI | 28x28x11 | SI | N |
| RS2504M | MONOFÁSICO | 25,0 | 400 | 300 | - | RECTRON +WW- | 29x20x4 | SI | K |
| RS2506M | MONOFÁSICO | 25,0 | 600 | 300 | - | RECTRON +WW- | 29x20x4 | SI | K |
| BRS25-06 | MONOFÁSICO | 25,0 | 600 | 300 | - | SEP | 28x28x11 | SI | N |
| BRS25-10 | MONOFÁSICO | 25,0 | 1000 | 300 | - | SEP | 28x28x11 | SI | N |
| 36MB60A (35MB60A) | MONOFÁSICO | 35,0 | 600 | 500 | - | VISHAY I.R. | 28x28x20 | SI | N |
| 3KC3560 | MONOFÁSICO | 35,0 | 600 | 300 | - | EDI | 28x28x11 | SI | N |
| FB3506 | MONOFÁSICO | 35,0 | 600 | 300 | - | FAGOR | 28X28X8 | SI | N |
| BRS35-10 (KBPC3510) | MONOFÁSICO | 35,0 | 1000 | 400 | - | KBPC3510 / GBPC3510 | 28x28x11 | SI | N |
| GBPC3510 | MONOFÁSICO | 35,0 | 1000 | 400 | - | VISHAY | 28x28x10 | SI | N |
| 36MB140A | MONOFÁSICO | 35,0 | 1400 | 500 | - | VISHAY I.R. | 28x28x20 | SI | N |
| 36MB160A | MONOFÁSICO | 35,0 | 1600 | 400 | - | VISHAY I.R. | 28x28x20 | SI | N |
| BRS50-06 (MB506) | MONOFÁSICO | 50,0 | 600 | 400 | - | DC | 28x28x11 | SI | N |
| BRS50-10 (KBPC5010) | MONOFÁSICO | 50,0 | 1000 | 400 | - | SEP | 28x28x11 | SI | N |
| MDQ50-16 | MONOFÁSICO | 50,0 | 1600 | 750 | - | JEENDA | 80x42x33 | - | O1 |
| M50100SB1600 | MONOFÁSICO | 100,0 | 1600 | 1.500 | - | JEENDA | 58x45x20 | - | O3 |
| MDQ100-16 | MONOFÁSICO | 100,0 | 1600 | 1.000 | - | JEENDA | 80x42x33 | - | O1 |
| MDQ200-16 | MONOFÁSICO | 200,0 | 1600 | 3.000 | - | JEENDA | 94x52x29 | - | O2 |
| 26MT160 | TRIFÁSICO | 25,0 | 1600 | 360 | - | VISHAY I.R. | 28x28x10 | SI | Q1 |
| SQL3510 | TRIFÁSICO | 35,0 | 1000 | 400 | - | JEENDA | 60x32x13 | SI | Q3 |
| 36MT160A | TRIFÁSICO | 35,0 | 1600 | 400 | - | VISHAY I.R. | 28x28x10 | SI | Q1 |
| SKBPC35-16 | TRIFÁSICO | 35,0 | 1600 | 400 | - | JEENDA | 28x28x10 | SI | Q1 |
| SQL5010 | TRIFÁSICO | 50,0 | 1000 | 500 | - | JEENDA | 60x32x13 | SI | Q3 |
| MDS50-16 | TRIFÁSICO | 50,0 | 1600 | 750 | - | JEENDA | 80x42x33 | - | T1 |
| 6RI75G-160B | TRIFÁSICO | 75,0 | 1600 | 1.000 | - | FUJI | 80x40x30 | - | T1 |
| PSD51-16 | TRIFÁSICO | 85,0 | 1600 | 750 | - | POWER SEM. | 80x29x18 | - | T3 |
| 90MT160K | TRIFÁSICO | 90,0 | 1600 | 770 | - | VISHAY I.R. | 94x35x30 | - | S |
| 6RI100G-120 | TRIFÁSICO | 100,0 | 1200 | 1.200 | - | FUJI | 80x40x30 | - | T1 |
| MDS100-16 | TRIFÁSICO | 100,0 | 1600 | 1.000 | - | JEENDA | 80x42x33 | - | T1 |
| M50100TB1600 | TRIFÁSICO | 100,0 | 1600 | 1.500 | - | JEENDA | 58x45x20 | - | R |
| DDB6U205N16L | TRIFÁSICO | 120,0 | 1600 | 1.600 | - | EUPEC | 94x42x30 | - | S |
| EFF15C | TRIFÁSICO | 135,0 | 600 | 1.500 | - | GENTRON | 102x64x30 | - | U |
| 160MT160K-JEENDA | TRIFÁSICO | 160,0 | 1600 | 1.500 | - | JEENDA | 94x35x30 | - | S |
| 160MT160K-VISHAY | TRIFÁSICO | 160,0 | 1600 | 1.500 | - | VISHAY I.R. | 94x35x30 | - | S |
| EFG15G | TRIFÁSICO | 170,0 | 1400 | 1.950 | - | CRYDOM | 102x64x25 | - | U |
| VUO160-16N07 | TRIFÁSICO | 160,0 | 1600 | 1.800 | - | IXYS | 94x54x30 | - | T2 |
| MDS200-16 | TRIFÁSICO | 200,0 | 1600 | 2.100 | - | JEENDA | 80x42x33 | - | T1 |
OBSERVACIONES:
|
