MODULOS DE POTENCIA

VISHAY - I.R. - POWEREX - C3 SEMI - IXYS - SEMIKRON

SCR + SCR / SCR + DIODO / DIODO + SCR / DIODO + DIODO



CODIGO

IF (AV)

(A)

IRMS

(A)

VRRM

(V)

IFSM

(A)

dv/dt

(V/µs)

VGT

MAX

(V)

IGT

MAX

(mA)

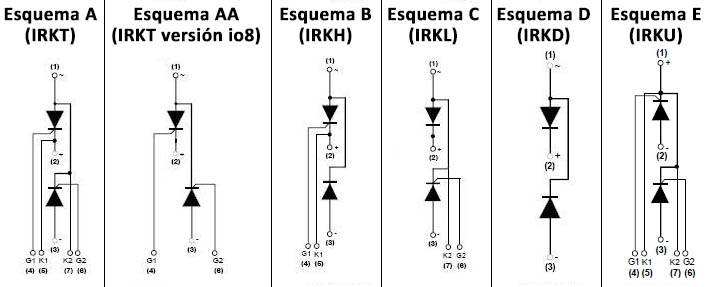

ESQUEMA

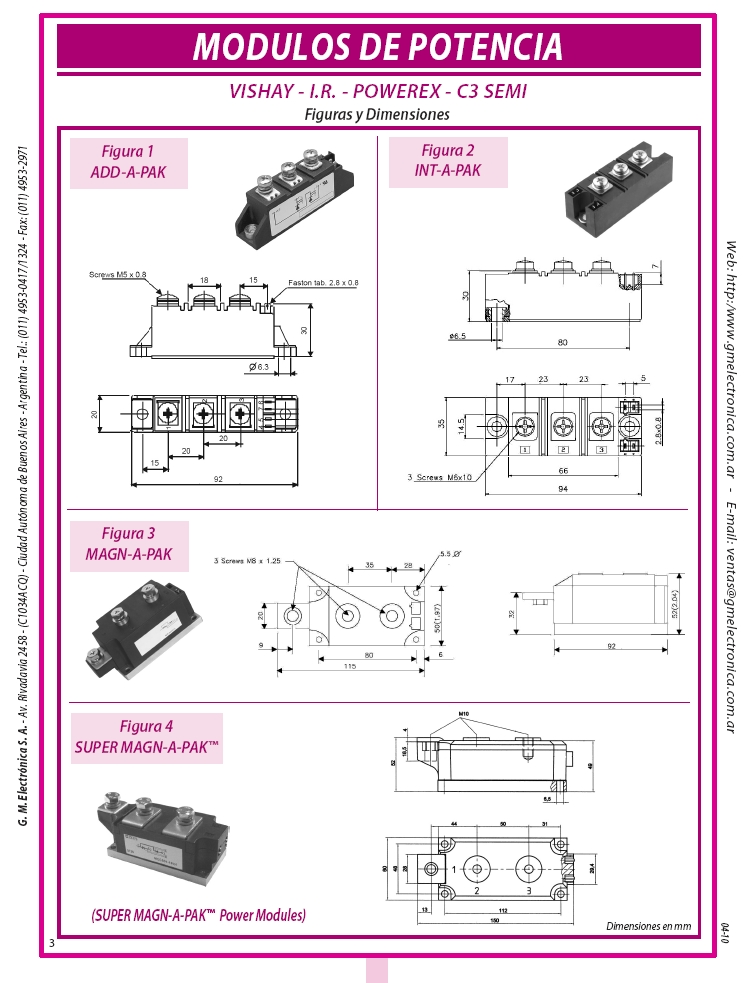

FIGURA

CONFIGURACION
IRKT26-16  25 55 1600 400 500 2.5 100 A  1 SCR-SCR
IRKT41-12 40 88 1200 850 500 2.5 100 A  1 SCR-SCR
IRKT41-14 40 88 1400 850 500 2.5 100 A  1 SCR-SCR
IRKT41-16 40 88 1600 850 500 2.5 100 A  1 SCR-SCR
IRKT56-12 55 122 1200 1310 500 2.5 100 A  1 SCR-SCR
IRKT56-16 55 122 1600 1310 500 2.5 100 A  1 SCR-SCR

MCC56-12IO1B

64

100

1200

1500

1000

1.5

100

A

1

SCR-SCR

MCC56-14IO8B

64

100

1400

1500

1000

1.5

100

A

1

SCR-SCR
IRKT91-12 90 200 1200 1785 500 2.5 120 A  1 SCR-SCR

IRKT91-16

(SKKT92-16 SEMIKRON)

90

200

1600

1785

500

2.5

120

A

1

SCR-SCR

MCC95-14IO1B

116

180

1400

1500

1000

2.5

150

A

1

SCR-SCR

IRKT136-12

 (IRKT132-12)

 135  300 1200 3200 500 3 150 A  2 SCR-SCR
IRKT136-16 135 300 1600 3200 1000 3 150 A  2 SCR-SCR
IRKT162-12 160 355 1200 5100 500 3 200 A  2 SCR-SCR
IRKT162-16 (*) 160 355 1600 5100 500 3 200 A  2 SCR-SCR
IRKT230-12 230 506 1200 7500 500 3 200 A  3 SCR-SCR
IRKT250-12 250 550 1200 8500 500 3 200 A  3 SCR-SCR
IRKT250-16 250 550 1600 8500 500 3 200 A  3 SCR-SCR
MCC312-16IO1 320 520 1600 9200 1000 2 150 A 3 SCR-SCR

IRKT500-16

(LD431650 POWEREX)

 500 900 1600 16300 1000 3 200 A  4 SCR-SCR
MCC501-16IO1 503 1195 1600 16000 1000 2.5 250 A 4 SCR-SCR
IRKH56-12 55  122 1200 1310 500 2.5 100 B 1 SCR-DIODO (*1)
IRKH91-12 90 200 1200 1785 500 2.5 120 B 1 SCR-DIODO (*1)
IRKH91-16 90 200 1600 1785 500 2.5 120 B 1 SCR-DIODO (*1)
SKKH91-06D 95 190 600 2000 500 3 150 B 1 SCR-DIODO (*1)

SKKH92-16E

(SEMIKRON)

 95 190 1600 2000 1000 3 150 B 1 SCR-DIODO (*1)

MCD95-12IO1B

116

180

1200

2250

1000

2.5

150

B

1

SCR-DIODO (*1)
IRKH162-16 (**) 160 355 1600 4300 500 3 200 B 2 SCR-DIODO (*1)
MCD162-16IO1 190 300 1600 6000 1000 2.5 150 B 2 SCR-DIODO (*1)
IRKL56-06 55 122 600 1310 500 2.5 100 C 1 SCR-DIODO (*2)
IRKL56-12 55 122 1200 1310 500 2.5 100 C 1 SCR-DIODO (*2)
IRKL91-06 90 200 600 1785 500 2.5 120 C 1 SCR-DIODO (*2)
IRKL91-12 90 200 1200 1785 500 2.5 120  C 1 SCR-DIODO (*2)
IRKL91-16 (#) 90 200 1600 1785 500 2.5 120 C 1 SCR-DIODO (*2)
IRKD56-12 55 - 1200 1605 -  - - D 1 DIODO-DIODO
IRKD56-16 55 - 1600 1605 - - - D 1 DIODO-DIODO

IRKD81-16

(SKKD81-16 SEMIKRON)

 82 - 1600 1750 - - - D 1 DIODO-DIODO
IRKD91-12 90 - 1200 2020 - - - D 1 DIODO-DIODO
IRKD91-16 90 - 1600 2020 - - - D 1 DIODO-DIODO
IRKD166-12 165 - 1200 3350 - - - D 2 DIODO-DIODO
IRKD166-16 165 - 1600 3350 - - - D 2 DIODO-DIODO
IRKD320-16 320 - 1600 8500 - - - D 3 DIODO-DIODO
IRKU91-12AS90  95 150 1200 2000 1000 2.5 150 E 1 SCR-SCR

(*) EN POWEREX:  CD631615A        (**) EN POWEREX : CD621615  /  EN VISHAY  VSKH162-16

(#)  EN POWEREX:  CD4C1690

(*1) CONTROL POSITIVO /  (*2) CONTROL NEGATIVO



CODIGO

C3 SEMI

IF (AV)

(A)

IRMS

(A)

VRRM

(V)

IFSM

(A)

dv/dt

(V/µs)

VGT

MAX

(V)

IGT

MAX

(mA)

ESQUEMA

FIGURA

CONFIGURACION
CSKT27-12E 25 55 1200 400 1000 3 150 A  1 SCR-SCR
CSKT57-12E 55 122 1200 1000 1000 3 150 A  1 SCR-SCR
CSKT92-12E  90 200 1200 1950 1000 3 150 A  1 SCR-SCR
CSKT132-12E 130 300 1200 5850 1000 2.5 150 A  2 SCR-SCR
CSKT162-12E 162 355 1200 6400 1000 2.5 150 A  2 SCR-SCR
CSKT253-12E 250 550 1200 9000 1000 2 150 A  3 SCR-SCR
