TRANSFORMADORES DE PULSO <para el disparo de SCRs y Triacs>
Vitec |
CODIGO |
RELACION | MIN Lp
(µH) |
MAX LL
(µH) |
MAX Cc (pF) |
MAX RDC
(Ohms) |
AISLACION
(VRMS) |
MAX TENSION
(VRMS) |

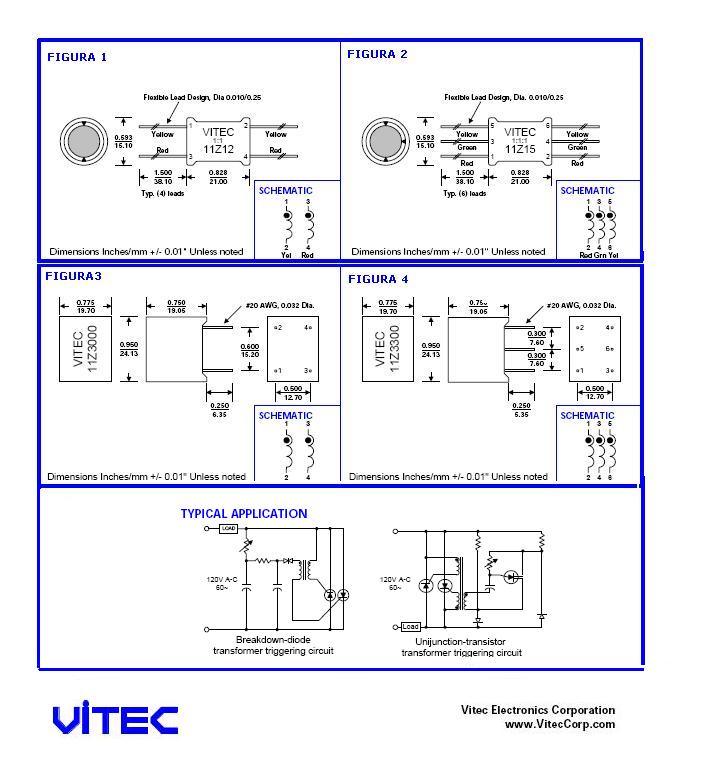

FIGURA |
| 11ZR12 | 1:1 | 200 | 3 | 800 | 1.5-1.5 | 1600 | 240 | 1 |
| 11ZR13 | 1:1:1 | 200 | 3 | 800 | 2-2-2 | 1600 | 240 | 2 |
| 11ZR3200 | 1:1 | 200 | 5 | 500 | 3-3 | 2500 | 550 | 3 |
| 11ZR3300 | 1:1:1 | 200 | 5 | 500 | 5-5-5 | 2500 | 550 | 4 |
Los viejos códigos 11Z12, 11Z13, 11Z3200, 11Z3300 , se reemplazan por 11ZR12, 11ZR13, 11ZR3200 , 11ZR3300 respectivamente.
21/04/08
