Observaciones:

(*) Rápidos – tipo Inversor
(#) Aislados

Modelo	It rms (A)	Vd rms (V)	Ig (mA)	Ent. nivel lógico		Encapsulado	Fig.
Modelo	It rms (A)	Vd rms (V)	Ig (mA)	Ent. nivel lógico	Cuadrantes	Encapsulado	Fig.
MAC97A4	0,6	200	5	SI	4	TO-92	A2
MAC97A6	0,6	400	5	SI	4	TO-92	A2
MAC97A8	0,6	600	5	SI	4	TO-92	A2
FT0109MN	1,0	600	10	SI	4	SOT-223	A1
Z0103MN	1,0	600	3	SI	4	SOT-223	A1
Z0107MA	1,0	600	5	SI	4	TO-92	A2
Z0109MA	1,0	600	10	SI	4	TO-92	A2
Z0107NA	1,0	800	5	SI	4	TO-92	A2
TW10N400CZ	10,0	400	50	NO	3	201.C3 M6	T
BTA10-600 #	10,0	600	50	NO	4	TO-220	E
KS100A-1200	100,0	1.200	200	NO	3	TO-94	K
BT138-600E	12,0	600	50	NO	3	TO-220	E
BT139-600E	12,0	600	50	NO	3	TO-220	E
BTA12-600B	12,0	600	50	NO	3	TO-220	E
MAC212A8FP #	12,0	600	50	NO	4	TO-220	E
BTA12-800B	12,0	800	50	NO	3	TO-220	E
BTB12-800 CW	12,0	800	35	NO	3	TO-220	E
Q6015A #	15,0	600	50	NO	3	SWEDGE TO-3	V
Q6015L5 #	15,0	600	50	NO	3	TO-220	E
TIC246D	16,0	400	50	NO	3	TO-220	E
BTA16-600B #	16,0	600	50	NO	3	TO-220	E
BTA16-800B #	16,0	800	50	NO	3	TO-220	E
KS20A-600	20,0	600	45	NO	3	TO-48	G
MAC320A6FP #	20,0	600	50	NO	3	TO-220	E
BTA20-700BW #	20,0	700	50	NO	3	TO-220	E
CTA25-1000B #	25,0	1.000	50	NO	3	TO-3P	W
MAC223A6	25,0	400	50	NO	3	TO-220	E
Q4025L6 #	25,0	400	80	NO	3	TO-220	E
TIC263D	25,0	400	50	NO	3	TO-3P	W
BTA26-600B #	25,0	600	50	NO	3	TO-3P	W
TIC263M	25,0	600	50	NO	3	TO-3P	W
BTA26-800B #	25,0	800	50	NO	3	TO-3P	W
2N6342	4,0	200	100	NO	3	TO-220	E
2N6073A	4,0	400	60	SI	4	TO-126	D
BT134-500E	4,0	500	10	NO	4	TO-126	D
BT136-500D	4,0	500	5	SI	4	TO-220	E
2N6075B	4,0	600	60	NO	4	TO-126	D
BT134-600E	4,0	600	10	NO	4	TO-126	D
BT136-600E	4,0	600	10	NO	4	TO-220	E
BT136S-600	4,0	600	5	SI	4	TO-252 / D-PAK	F
BT136-800E	4,0	800	10	NO	4	TO-220	E
S25RIA120	40,0	1.200	0	NO	3	TO-65	H
SC265D	40,0	400	150	NO	4	TO-65	H
BTA41-600 #	40,0	600	50	NO	4	TO-3P	W
Q6040K7 #	40,0	600	100	NO	3	TO-3P	W
Q8040K7 #	40,0	800	100	NO	3	TO-3P	W
50AC100	50,0	1.000	200	NO	4	TO-65	H
KS50A-1200	50,0	1.200	150	NO	3	TO-65	H
SC141D	6,0	400	50	NO	3	TO-220	E
TW6N400CZ	6,0	400	50	NO	3	201.C3 M6	T
SC141E	6,0	500	50	NO	3	TO-220	E
BTA06-600B #	6,0	600	50	NO	4	TO-220	E
BTB06-600C	6,0	600	35	NO	4	TO-220	E
TW6N600CZ	6,0	600	50	NO	3	201.C3 M6	T
BT136-600D	6,0	800	5	SI	4	TO-220	E
MAC3030-8	8,0	100	30	NO	4	TO-220	E
CTB08-1000C	8,0	1.000	25	NO	3	TO-220	E
MAC228A6	8,0	400	10	NO	4	TO-220	E
Q4008L4 #	8,0	400	25	NO	3	TO-220	E
T2800D	8,0	400	60	NO	4	TO-220	E
TIC226D	8,0	400	50	NO	3	TO-220	E
BT137-600E	8,0	600	10	NO	4	TO-220	E
BTA08-600 #	8,0	600	50	NO	4	TO-220	E
BTB08-600	8,0	600	50	NO	4	TO-220	E
Q6008L4 #	8,0	600	50	NO	3	TO-220	E
TIC226M	8,0	600	50	NO	3	TO-220	E
TW8N600UZ	8,0	600	50	NO	3	201.C3 M6	T
BT137-800E	8,0	800	10	NO	4	TO-220	E
MAC218A10FP #	8,0	800	50	NO	4	TO-220	E
Q8008L5 #	8,0	800	50	NO	3	TO-220	E
S50RIA120	80,0	1.200	0	NO	3	TO-65	H

Observaciones:

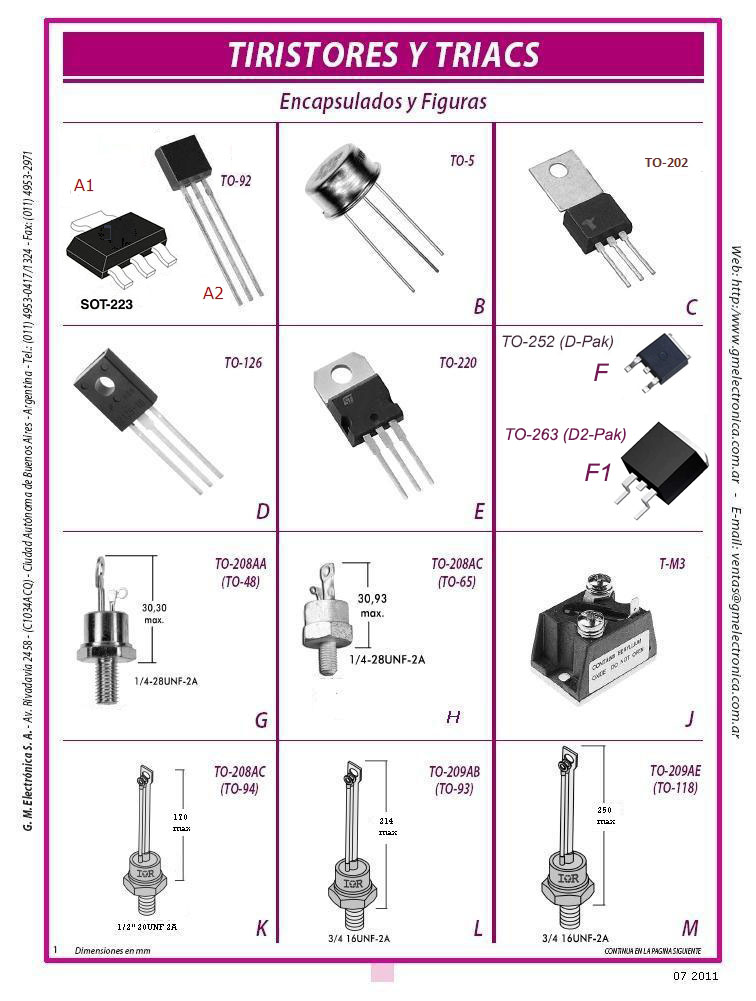

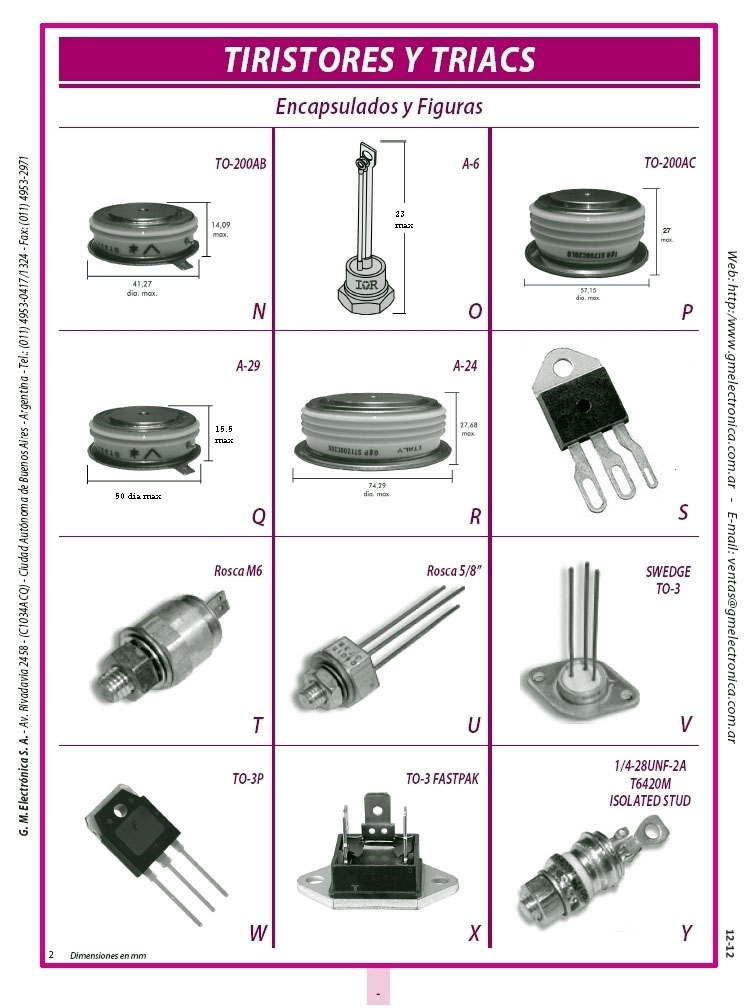

FIGURAS Y ENCAPSULADOS:
